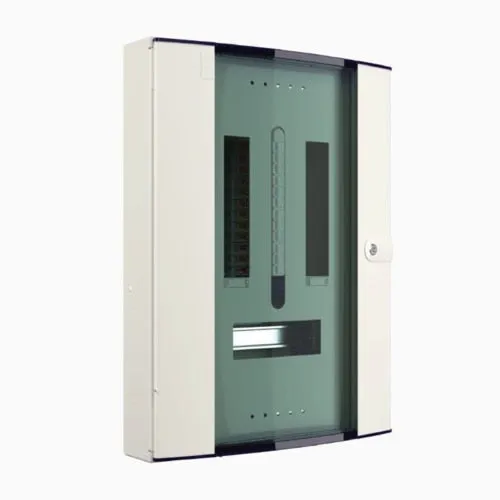

Hager 8 way surface mounting TPN board with glazed door.

• W: 465mm x H: 500mm x D: 132.5mm

• Standards Designed, manufactured and tested to BS EN 61439-3

• Busbar Current Rating: 125A

• Busbar Type Fully shrouded copper

• Busbar Rating 25kA Conditional

• Incoming:
  • 100A Switch
  • 125A Switch
  • 63A contactor AC3
  • 100A contactor AC3
  • Direct connection
  • RCCB incomers

• Outgoing Ways: 8

• Outgoing Protection:

  • Type B MCB (6A to 63A, 1P & 3P)
  • Type C, D MCB, (0.5A to 63A, 1P & 3P)
  • 1Mod and 2Mod RCBO

• Voltage Rating in AC: 230 / 415V

• IP Protection: IP3X to BS EN 60529

• Enclosure Body Type: Steel

• Cable Entry: Obround protected cable entry points

• Terminal Connection Capacity:
• Incoming Line Terminal: 50mm²
