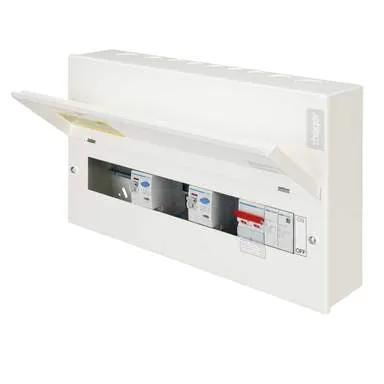

Hager 10 Way Dual RCD Configurable High Integrity Metal Clad Consumer Unit with SPD

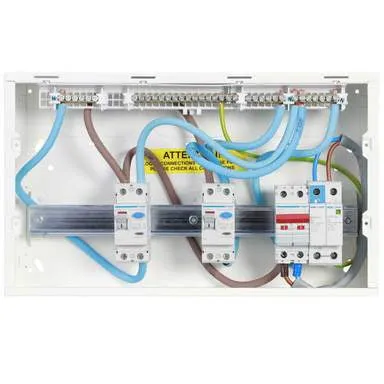

- Supplied with a full metal DIN rail, 100A switch disconnector incomer, 2 x 100A 30mA RCDs and a full complement of earth and neutral terminals along with marking labels, busbar and instructions
- All Design 10 consumer units contain top, bottom and rear knockouts
- Type 2 SPD fitted
- Conforms to BS EN 61439-3 Including Annex ZB (16kA rating)
- Board Configuration Configurable
- Current Rating : 100A
- Dimensions : (H)246 mm x (W)406 mm x (D)83 mm
- Door Type : Top Hinged
- Incoming Device 100A Isolator
- Knockouts : Round
- Material : Steel
- Mounting : Surface
- Number of Modules : 18
- Number of Outgoing Ways : 10
- Product Range Design : 10
- Rcd Rating : 100A
- Rcd Type : A
- Standards : BS EN 61439-3
- Surge Protection Fitted : Yes
- Tripping Sensitivity : 30mA
- Voltage Rating 230V
- Weight 5.3kg
