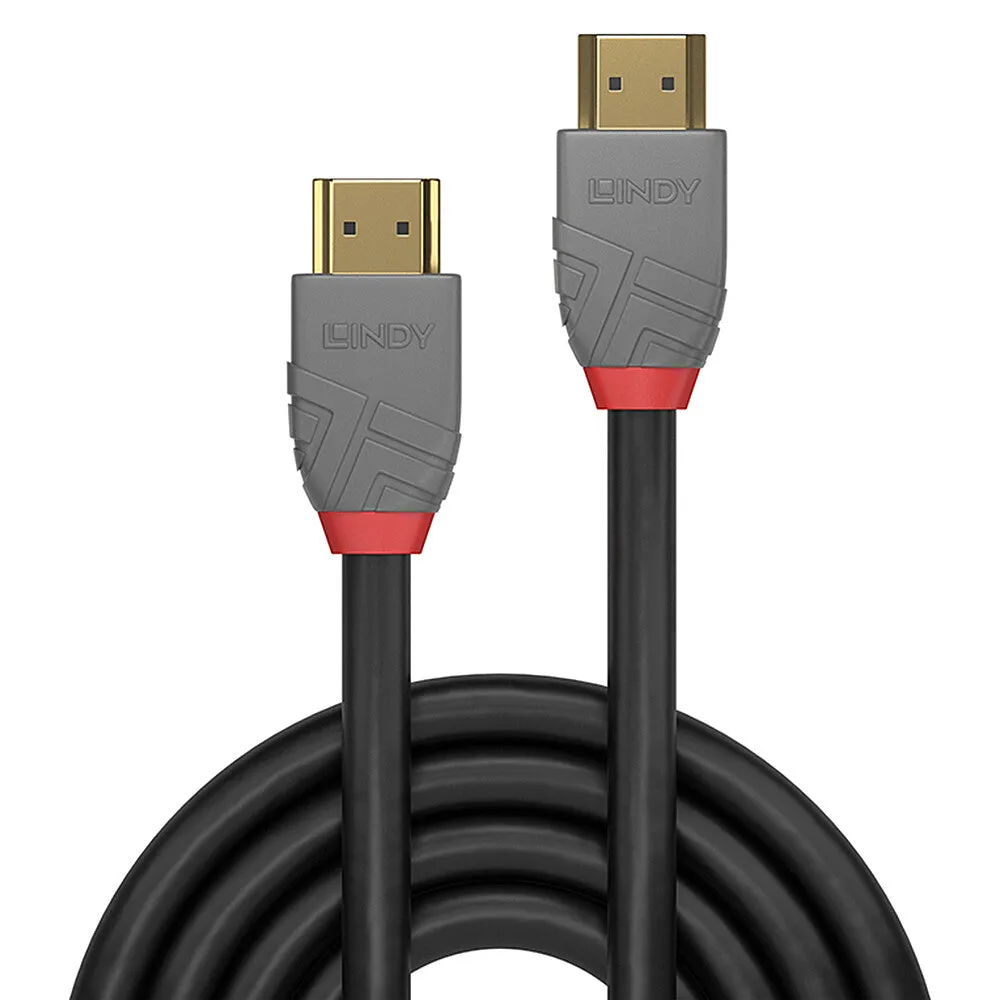

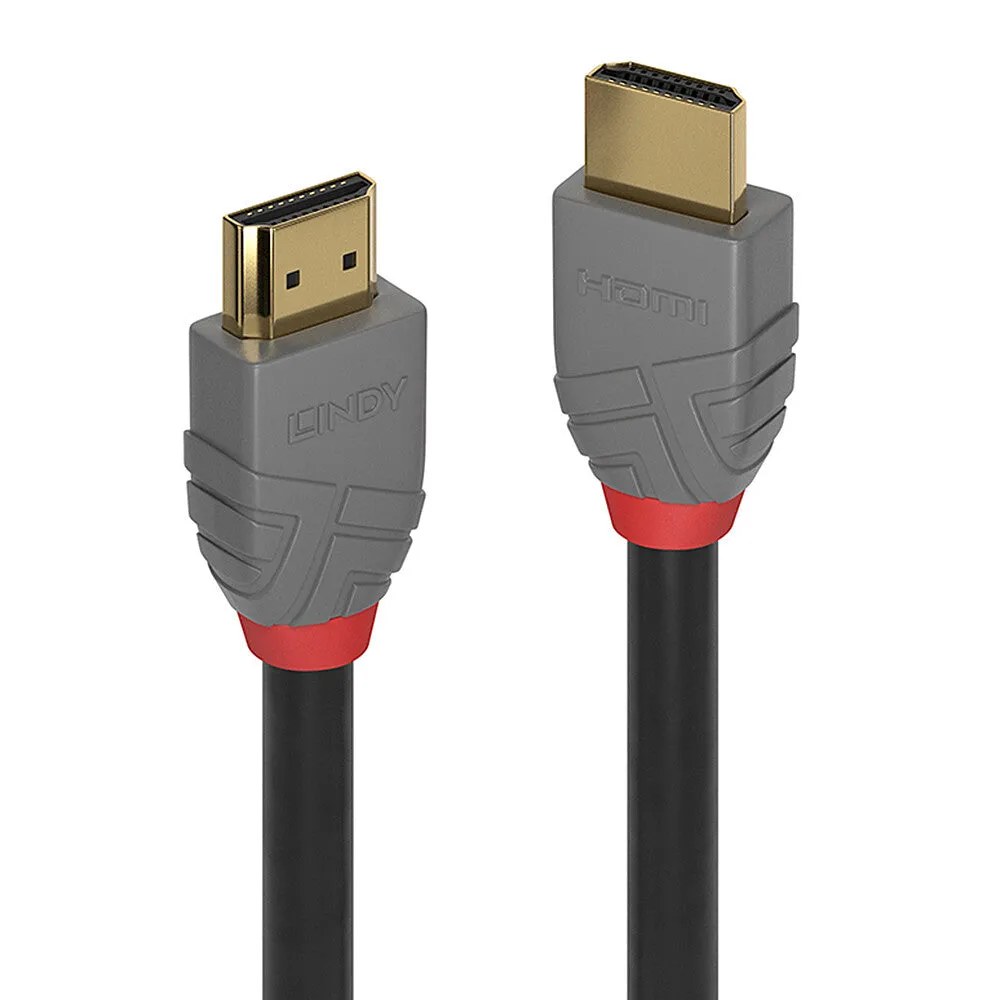

5m High Speed HDMI Cable, Anthra Line
Lindy 5m High Speed HDMI Cable, Anthra Line. Cable length: 5 m, Connector 1: HDMI Type A (Standard), Connector 1 gender: Male, Connector 2: HDMI Type A (Standard), Connector 2 gender: Male, Connector contacts plating: Gold, Data transfer rate: 18 Gbit/s, Product colour: Black, Grey
From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations.

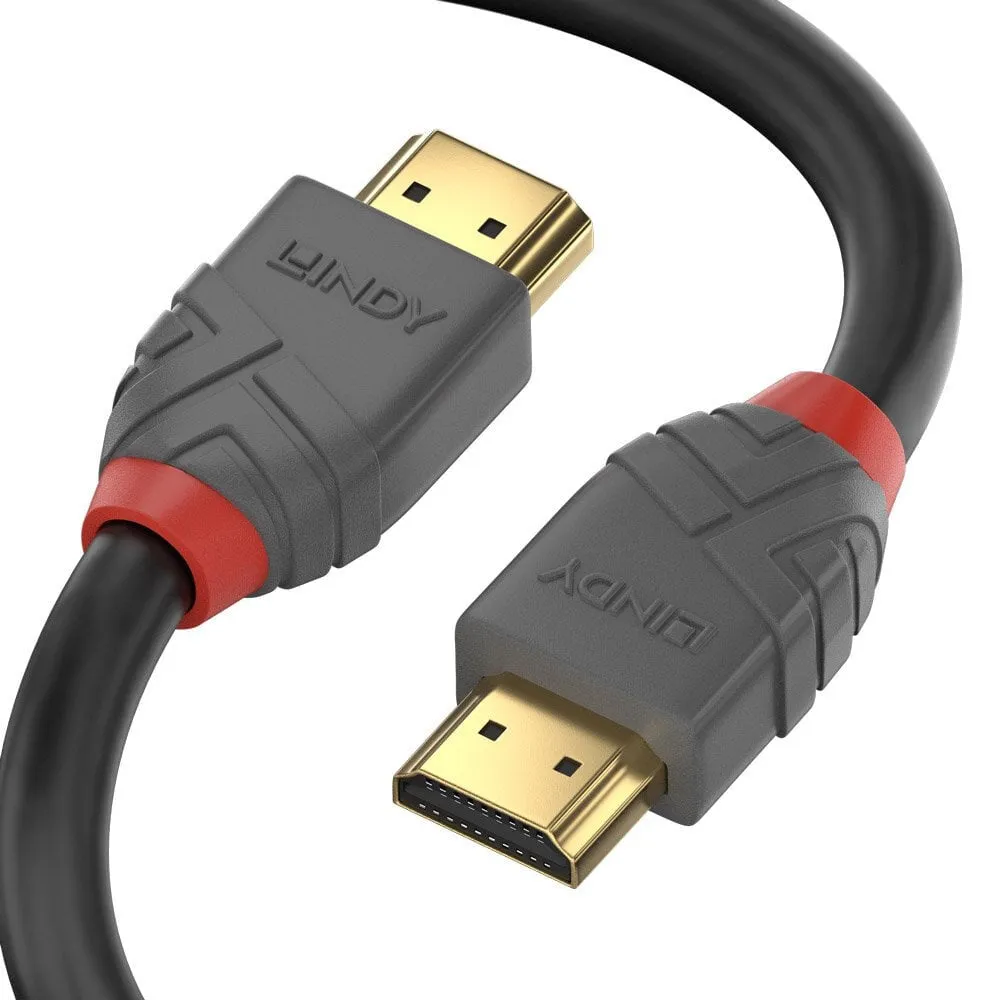

Anthra Line HDMI cables are premium connections that feature triple shielded with 30AWG copper conductors with for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 8bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.
The HDMI 2.0 specification is supported for 18Gbps bandwidth capacity in cable lengths up to 5m.
Anthra Line HDMI cables are available in lengths from 0.3m to 5m.
| Features |
|---|
| Quantity per pack | 1 pc(s) |
| Certification | RoHS, REACH, UL, ATC |
| Nominal attenuation | 300kHz-825MHz 5dB, 825MHz-2.475GHz 5dB, 2.475GHz-4.125GHz 12dB, 4.125GHz-5.1GHz 20dB |
| Colour sampling | 4:4:4 |
| Plug and Play | Yes |
| Bending radius (min) | 4.8 cm |
| Shield material | Copper |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Cable type | Round cable |
| Cable material | Copper |
| Connector housing material | Polyvinyl chloride (PVC) |
| Connector material | Gold |
| Connector contacts plating | Gold |
| Contact material | Phosphor copper |
| AWG wire size | 30 |
| Data transfer rate | 18 Gbit/s |
| HDMI Ethernet channel | Yes |
| Supported video modes | 2160p |
| Supported graphics resolutions | 4096 x 2160 |
| Product colour | Black, Grey |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 | HDMI Type A (Standard) |
| Cable length | 5 m |
| Operational conditions |
|---|
| Storage temperature (T-T) | -10 - 80 °C |
| Operating temperature (T-T) | -10 - 80 °C |
| Weight & dimensions |
|---|
| Package type | Polybag |
| Connector 2 dimensions (WxDxH) | 20 x 34.2 x 10.9 mm |
| Connector 1 dimensions (WxDxH) | 20 x 34.2 x 10.9 mm |
| Cable diameter | 6 mm |
| Technical details |
|---|
| Compliance certificates | RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code | 84733080 |
