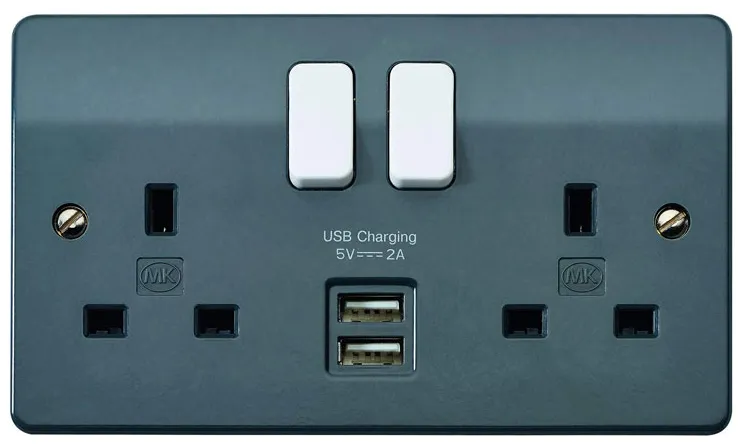

A range of socket outlets designed to provide optimal and efficient USB charging via two 5V outlets with a combined total of 2A charging.
Dual USB Charging Outlets offer end users easy access to power for charging a variety of devices such as smart phones, tablets and cameras whilst offering ease of installation and having all the advantageous design features of the Logic Plus™ range.
Integrated USB Features
• Dynamic Device Recognition ensures that USB outlets provide optimum charging compatibility across a wide range of devices
• Can charge a device at up to a full 2A. If only one device is connected to a USB Outlet the total output current of 2A is available from either outlet, if two devices are connected the total rated current of 2A is divided between the two outlets
• Differing manufacturers devices can be charged simultaneously via the two USB Outlets
• If the total charging current exceeds the rated level of 2A then the device will enter a current limiting safety mode, to maintain a steady charge
• Electronically protected against an overload or short circuit on either USB outlet
Ease of Installation Benefits
• Printed terminal markings on grey rear mouldings for clearer identification
• Backed out and captive terminal screws
• Top access, angled terminals make wiring easier and quicker
• Backed out and captive terminal screws
• Top access, angled terminals make wiring easier and quicker
Quality, Safety and Reliability as Standard
• Totally safe 3 pin operated safety shutter on 13A Socket Outlets
• Double pole switching
• 3mm minimum switch contact gap
• Additional electrical safety from neutral ‘make first’, ‘break last’ feature
• SELV isolation between mains and USB outlets for safety
• Switch contacts with silver contacts on both surfaces for good continuity
• Dual earthed for high integrity earthing applications
• Double pole switching
• 3mm minimum switch contact gap
• Additional electrical safety from neutral ‘make first’, ‘break last’ feature
• SELV isolation between mains and USB outlets for safety
• Switch contacts with silver contacts on both surfaces for good continuity
• Dual earthed for high integrity earthing applications
Standards and Approvals
Logic Plus™ 13A Socket outlets and 2A USB Charging outlets comply with
BS 5733 and IEC 61558-2-16.
BS 5733 and IEC 61558-2-16.
EMC Compatability:
IEC 61000-6-1
IEC 61000-6-3
IEC 61000-6-1
IEC 61000-6-3
MOUNTING BOXES
25MM
862ZIC
35MM
886ZIC
(for extra wiring space)
BS 5733:2010
