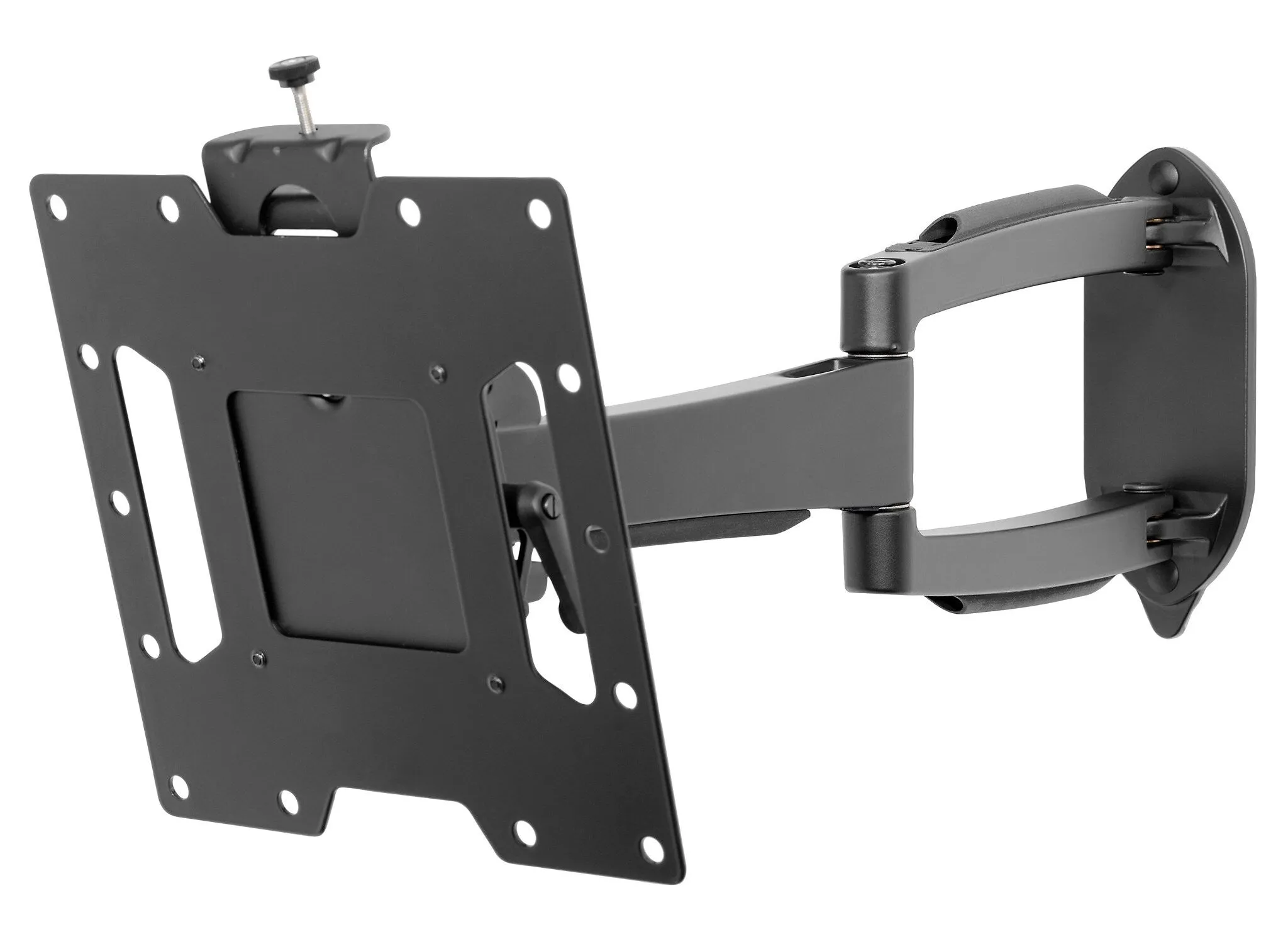

Smartmount Articulating Wall Mount for 22" to 43" Displays
Peerless SA740P. Maximum weight capacity: 36 kg, Minimum screen size: 55.9 cm (22"), Maximum screen size: 109.2 cm (43"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 200 x 200 mm. Height adjustment range: 0 - 13 mm, Tilt angle range: -5 - 15°, Distance to the wall (min): 7.7 cm, Distance to the wall (max): 55.4 cm. Product colour: Black

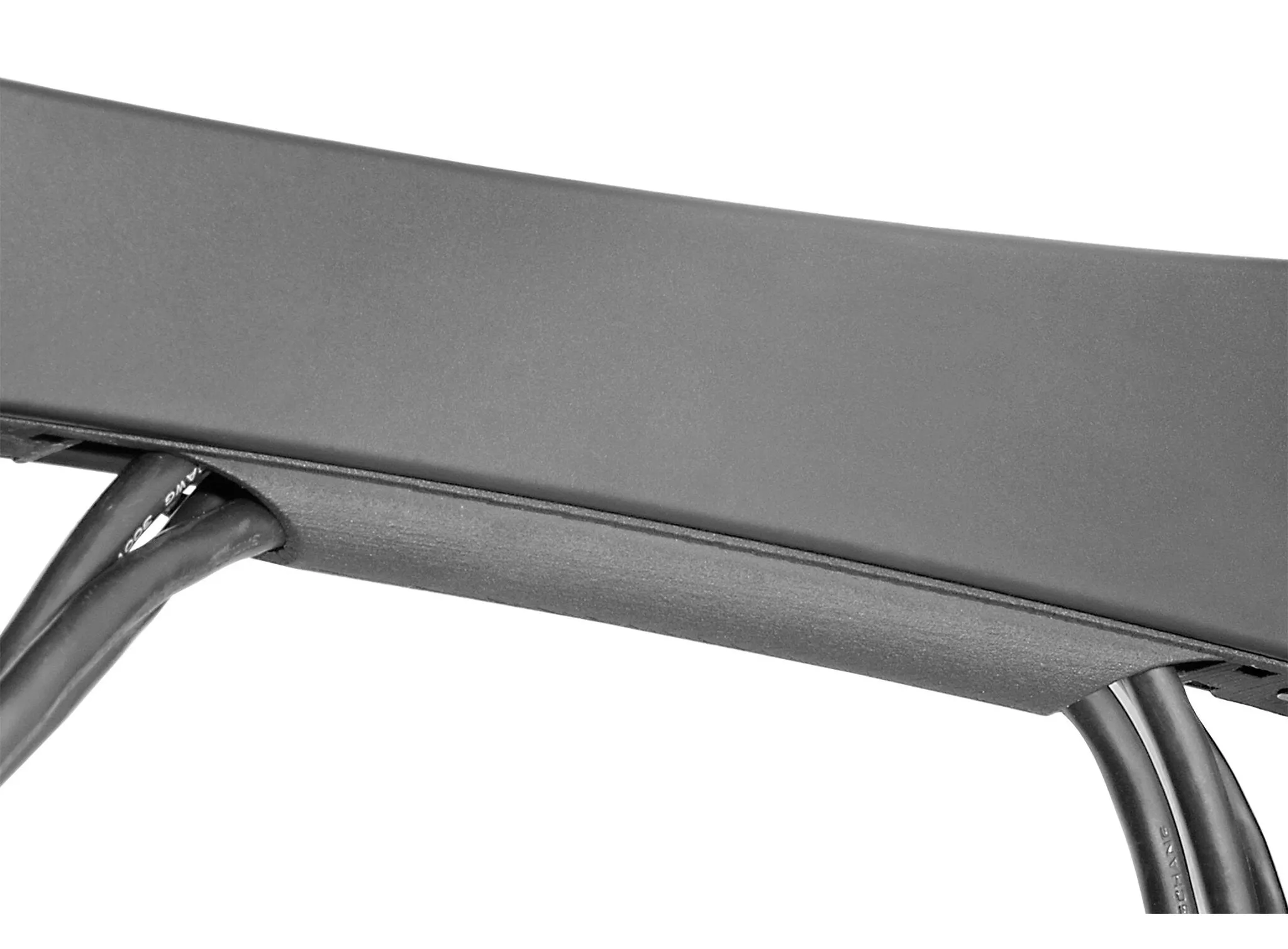

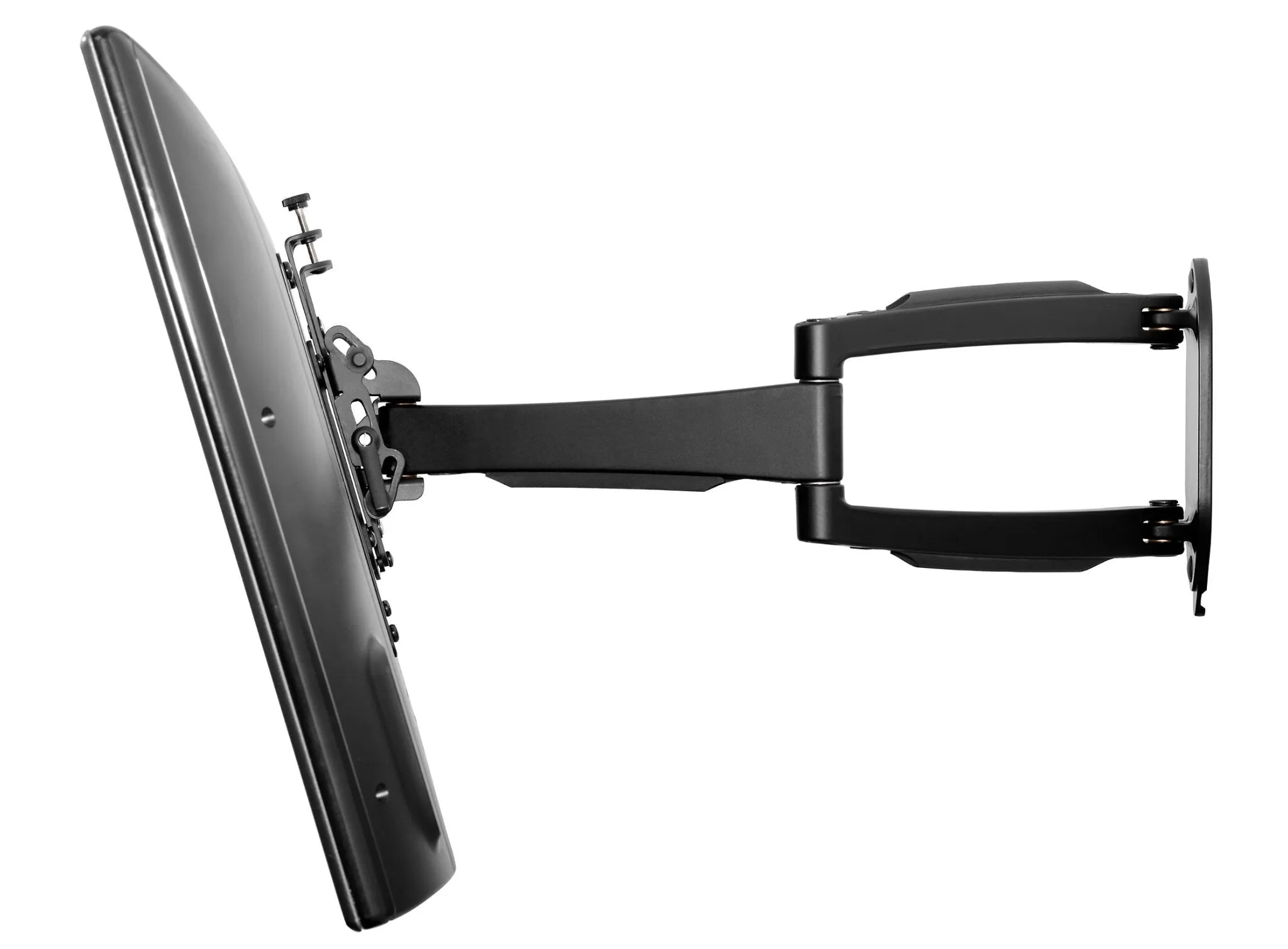

The SmartMount® Articulating Wall Mount series offers the most versatile installation features and mounting options. Vertical adjustment ability allows for post installation leveling, making it easier than ever to find the perfect display position. With SA740P, extend the display up to 21.8" (554mm) or fully-retract it to just 3.3" (77mm) from the wall for the perfect viewing position. The display can now simply be installed by a single person with the Hook-and-Hang™ system. One-Touch™ tilt technology offers 15°/-5° vertical tilt movement for the ideal viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.
5-Year Limited
| Mounting |
|---|
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100,200 x 100,200 x 200 |
| Maximum VESA mount | 200 x 200 mm |
| Minimum VESA mount | 100 x 100 mm |
| Mounting type | Wall |
| Maximum screen size | 109.2 cm (43") |
| Minimum screen size | 55.9 cm (22") |
| Maximum weight capacity | 36 kg |
| Ergonomics |
|---|
| Distance to the wall (min) | 7.7 cm |
| Distance to the wall (max) | 55.4 cm |
| Tilt adjustment | Yes |
| Easy to adjust | Yes |
| Cable management | Yes |
| Pivot angle | 0 - 90° |
| Tilt angle range | -5 - 15° |
| Height adjustment range | 0 - 13 mm |
| Height adjustment type | Manual |
| Height adjustment | Yes |
| Design |
|---|
| Certification | UL/TUV |
| Product colour | Black |
| Technical details |
|---|
| Easy to install | Yes |
| Orientation | Landscape/Portrait |
| Packaging content |
|---|
| Manual | Yes |
| Mounting kit | Yes |
| Weight & dimensions |
|---|
| Weight | 3.3 kg |
| Height | 258 mm |
| Depth (max) | 55.4 cm |
| Depth (min) | 7.7 cm |
| Width | 364 mm |
| Packaging data |
|---|
| Package type | Box |
| Package weight | 4.24 kg |
| Package height | 106 mm |
| Package depth | 292 mm |
| Package width | 387 mm |
| Logistics data |
|---|
| Harmonized System (HS) code | 85299097 |
