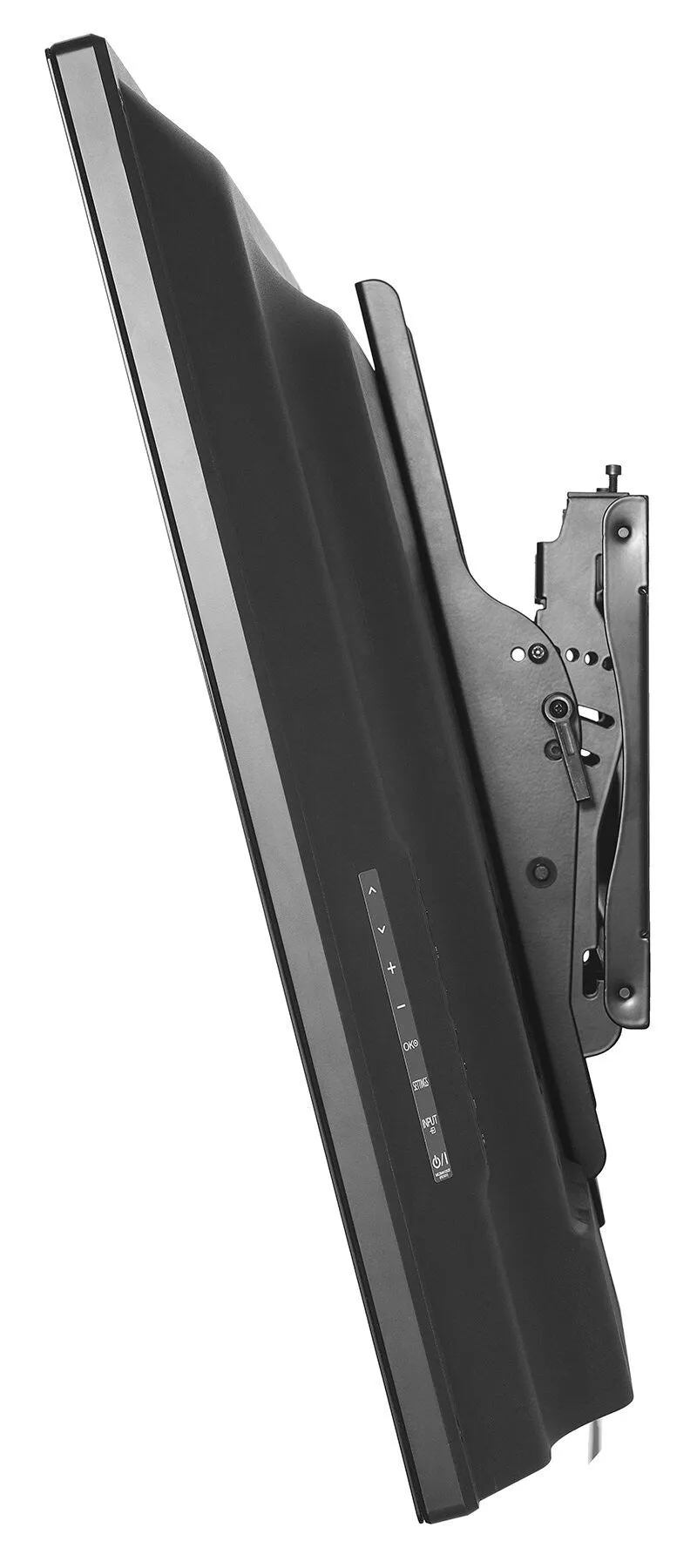

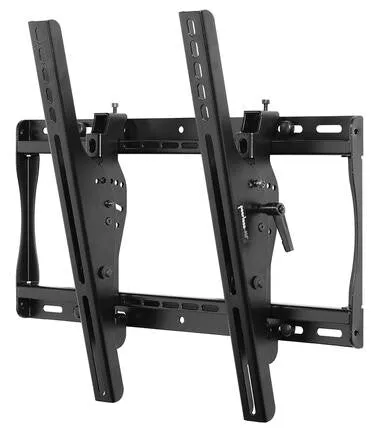

SmartMount Universal Tilt Wall Mount for 32" to 50" Displays
Peerless ST640P. Maximum weight capacity: 68 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 127 cm (50"), Maximum VESA mount: 400 x 400 mm. Tilt angle range: -5 - 15°, Distance to the wall (min): 6.7 cm, Distance to the wall (max): 14.5 cm. Product colour: Black
The SmartMount® Universal Tilt Wall Mount series offers the most versatile installation features and mounting options. Horizontal and vertical adjustment abilities allow for post installation leveling and side-to-side positioning, making it easier than ever to find the perfect TV position. Lock the tilt angle at installation to prevent tampering or moving with the IncreLok™ tilt technology. Security screws provided in the ST640 models deter tampering and theft. The open wall plate design offers total wall access, increasing the electrical and cable management options. The display can now simply be installed by a single person with the Hook-and-Hang™ system. The Easy-Glide™ adaptors hook onto the wall plate for an overall quick, simple, and secure installation.
| Mounting |
|---|
| Number of displays supported | 1 |
| Maximum VESA mount | 400 x 400 mm |
| Mounting type | Wall |
| Maximum screen size | 127 cm (50") |
| Minimum screen size | 81.3 cm (32") |
| Maximum weight capacity | 68 kg |
| Ergonomics |
|---|
| Distance to the wall (min) | 6.7 cm |
| Distance to the wall (max) | 14.5 cm |
| Tilt angle range | -5 - 15° |
| Design |
|---|
| Certification | UL, RoHS |
| Product colour | Black |
| Packaging content |
|---|
| Manual | Yes |
| Mounting kit | Yes |
| Weight & dimensions |
|---|
| Weight | 2.75 kg |
| Height | 429 mm |
| Depth (max) | 13.7 cm |
| Depth (min) | 6.7 cm |
| Width | 562 mm |
| Packaging data |
|---|
| Package weight | 3.55 kg |
| Package height | 75 mm |
| Package depth | 272 mm |
| Package width | 551 mm |
| Logistics data |
|---|
| Harmonized System (HS) code | 85299097 |
