RG59 Coaxial Cable 2 Core Power CCTV Cable (Shotgun)
RG59 2 composite cable allows you to send power and a video signal down just the one cable,
saving you installation time and money fitting 1 cable instead of 2..

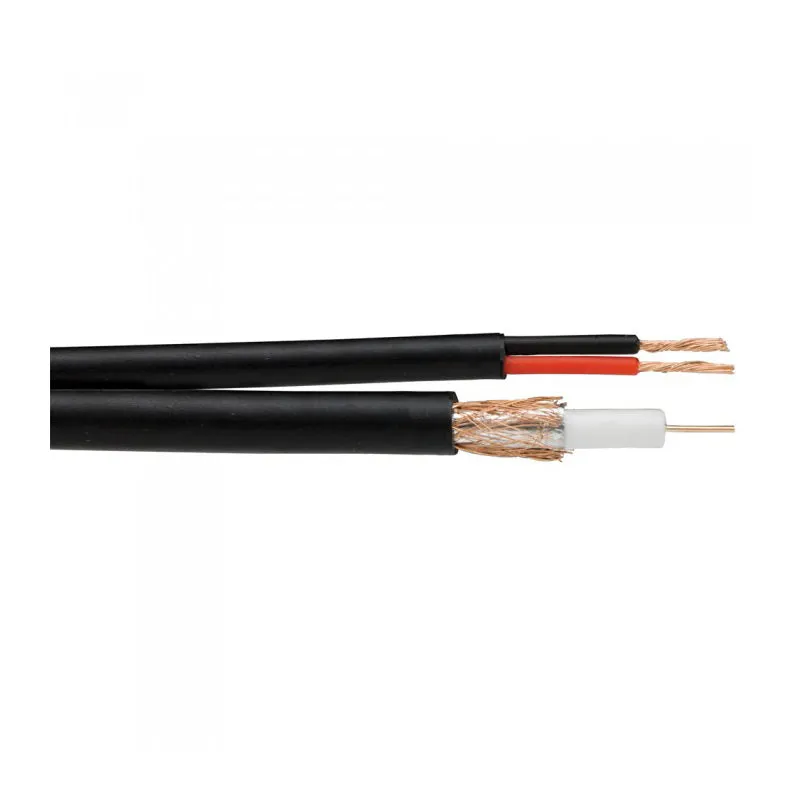

The two cables run in shotgun style can easily be separated to allow the power cores
to be taken to a power source leaving the RG59 to be crimped for connection to a DVR, camera or monitor.
The power cores are 0.2mm x 16 stranded to prevent interruptions
and are colour coded red 12V and black 0V to avoid any errors in connection.
Enables video and voltage to be delivered to a CCTV camera through a twin cable.
- Black, polyethylene jacket
- Coax Core:
- Solid, copper conductor
- Solid, polyethylene insulation
- Rated temperature: -20°C to 70°C
- Conductor resistance: <=66R/km; Insulation resistance: >10,000MR.km
- Nominal velocity ratio: >66%; Capacitance: <68pF/m; Impedance: 75 ±3R
- Power Cores:
- PVC insulation, black and red
- Conductor resistance: <=36R/km
