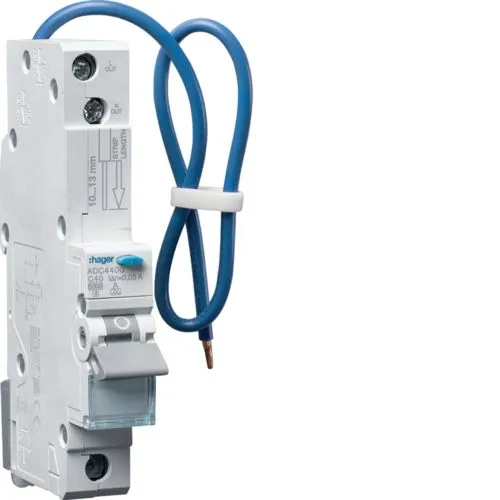

The Hager RCBO Range, designed for electrical safety in both commercial and domestic settings. This single pole, single module RCBO boasts a 10kA breaking capacity and 30mA residual current sensitivity, providing both overcurrent and fault protection in one compact unit. Available with an ampage range from 6a- 45a, select your option from the dropdown menu.
Architecture
- Neutral positionright
- Number of poles1 P
- Type of pole1 P
- Fixing modeDIN rail type O (symmetrical)
- CurveC
Main electrical features
- Rated operational voltage Ue230 / 240 V
- Frequency50/60 Hz
- Type of supply voltageAC
Voltage
- Rated insulation voltage250 V
- Rated impulse withstand voltage4000 V
Electric current
- Rated residual operating current30 mA
Electric current / temperature
- Rating current 30°C6 A - 45 A
Dimensions
- Depth of installed product70 mm
- Height of installed product115 mm
- Width of installed product17.8 mm
Power
- Total power loss under IN2 W
Endurance
- Electric endurance in number of cycles2000
- Number of mechanical operations10000
Equipment
- Quick connectno
- Can be accessorizedNo
Standards
- Standard textBS 61009-1 ; EN 61009-1
- European directive WEEEconcerned
Safety
- Protection index IPIP20
- Residual current typeA
Use conditions
- Operating temperature-25…40 °C
