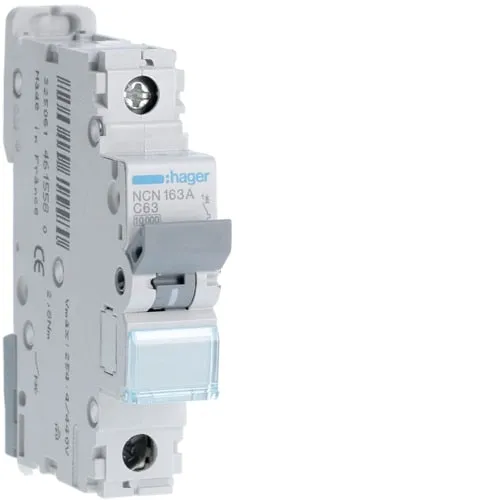

Name: Single Pole 10kA C Curve MCB 6a - 63a
SKU: 185980

Single Pole 10kA C Curve MCB 6a - 63a

$ 63.12

$ 82.06

Amperage:

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

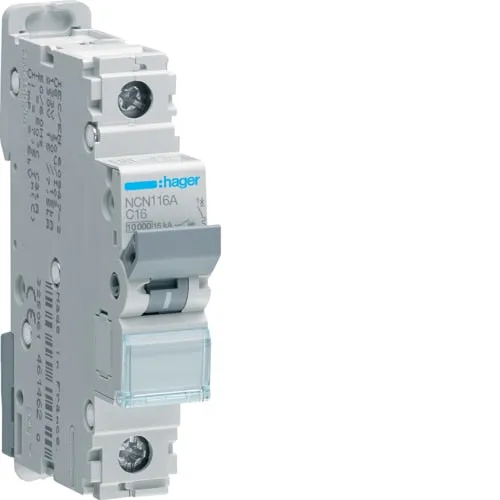

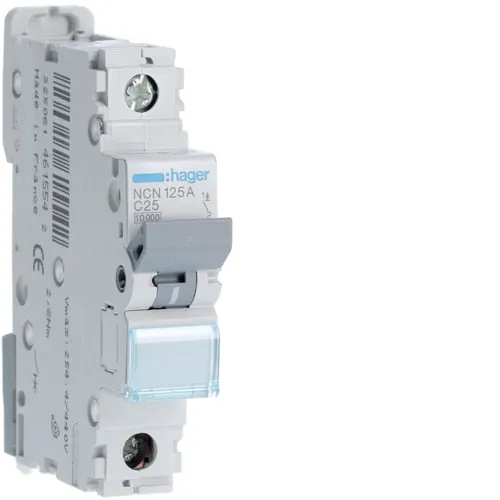

*Please note 1st image is of the 6A version* Hager Single Pole 10kA C Curve MCB ranges from 6a - 63a, Select your option from the dropdown. The hager MCBs ensure the protection of circuits against short circuits and against overload current.

Neutral position
without neutral
Number of poles
1 P
Type of pole
1 P
Curve
C

Rated operational voltage Ue
230 / 400 V
Type of supply voltage
AC

Rated insulation voltage
500 V
Rated impulse withstand voltage
6000 V

Rated service breaking capacity Ics AC according IEC 60898-1
7.5 kA
Rated short circuit breaking capacity Icn under 230V AC according IEC60898-1
10 kA

Rating current 30°C
6 A - 63 A

Depth of installed product
70 mm
Height of installed product
83 mm
Width of installed product
17.5 mm

Total power loss under IN
1.33 W

Electric endurance in number of cycles
4000
Number of mechanical operations
20000

Tightening torque
2,8Nm

Can be accessorized
Yes

Standard text
EN 60898-1 ; IEC 60947-2
European directive WEEE
concerned

Protection index IP
IP20

Operating temperature
-25…70 °C

Single Pole 10kA C Curve MCB 6a - 63a

Single Pole 10kA C Curve MCB 6a - 63a
