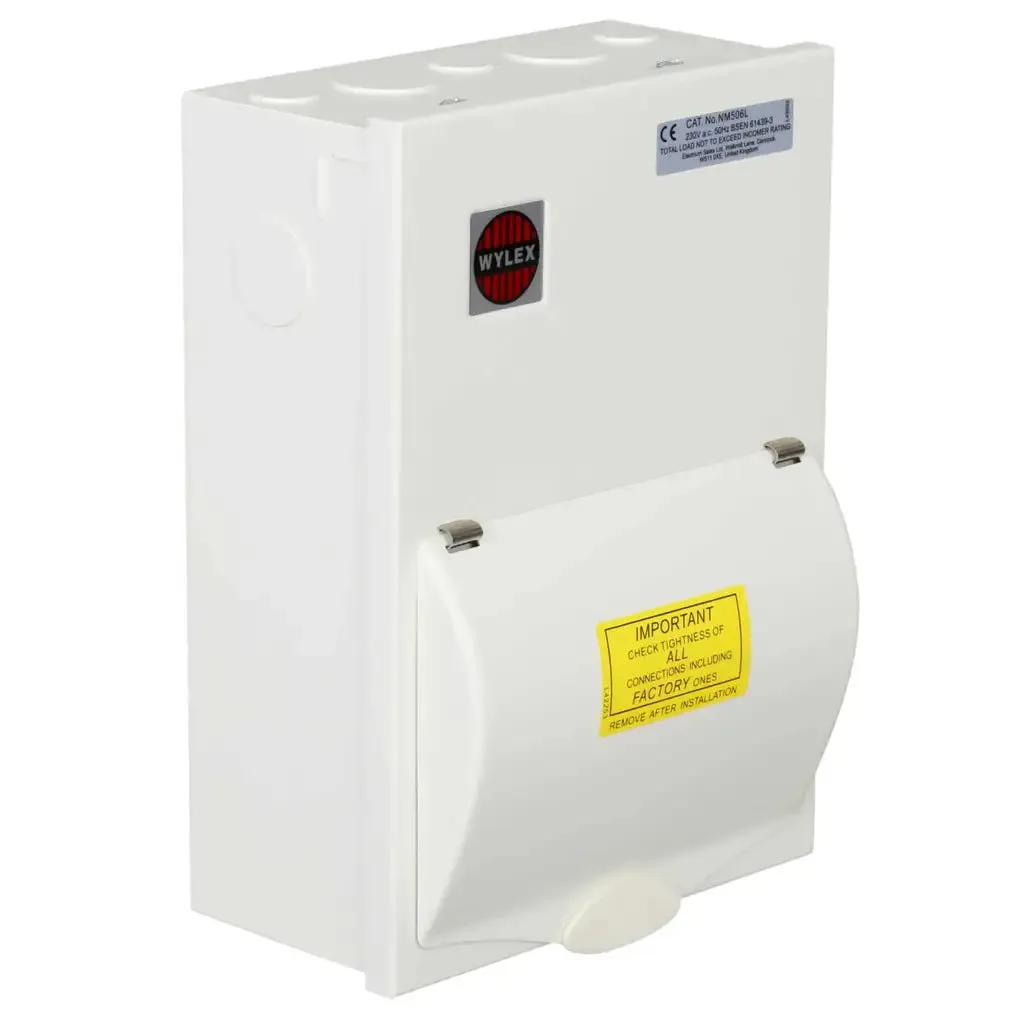

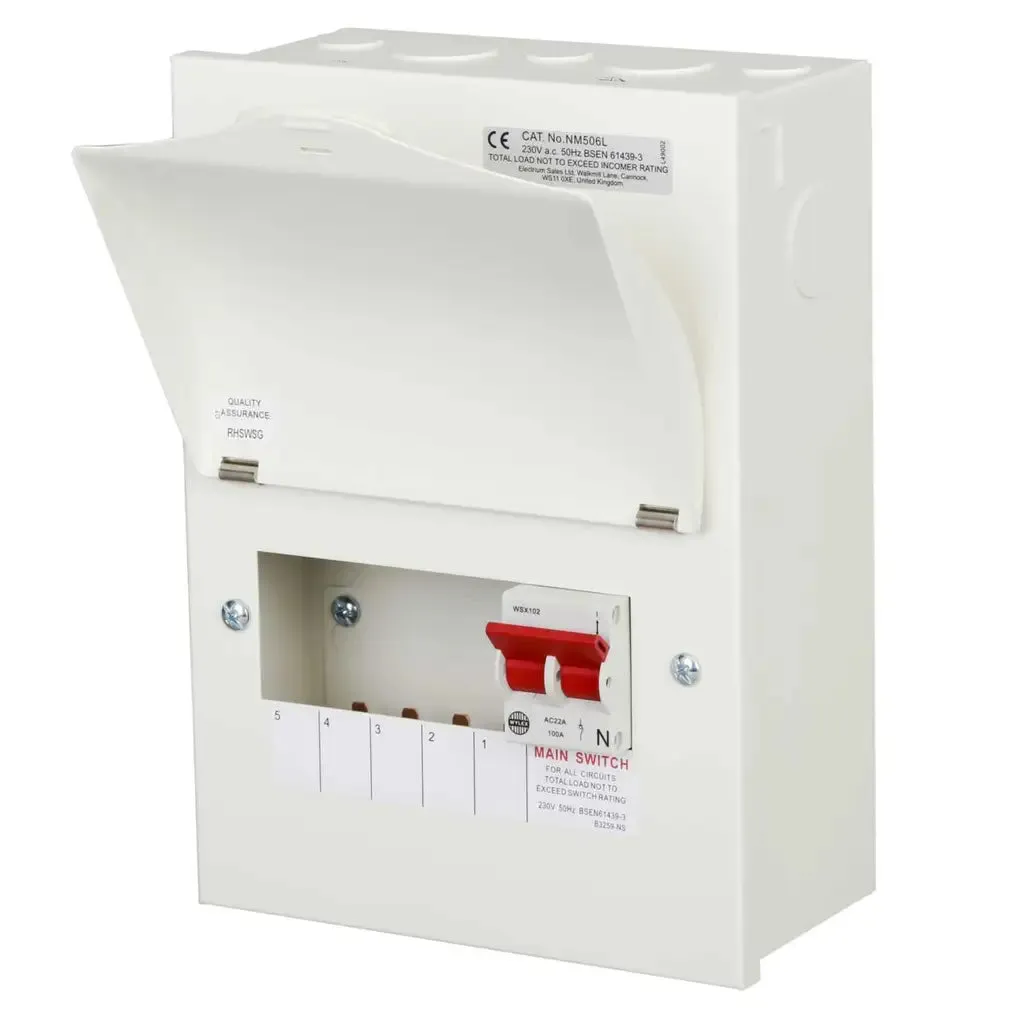

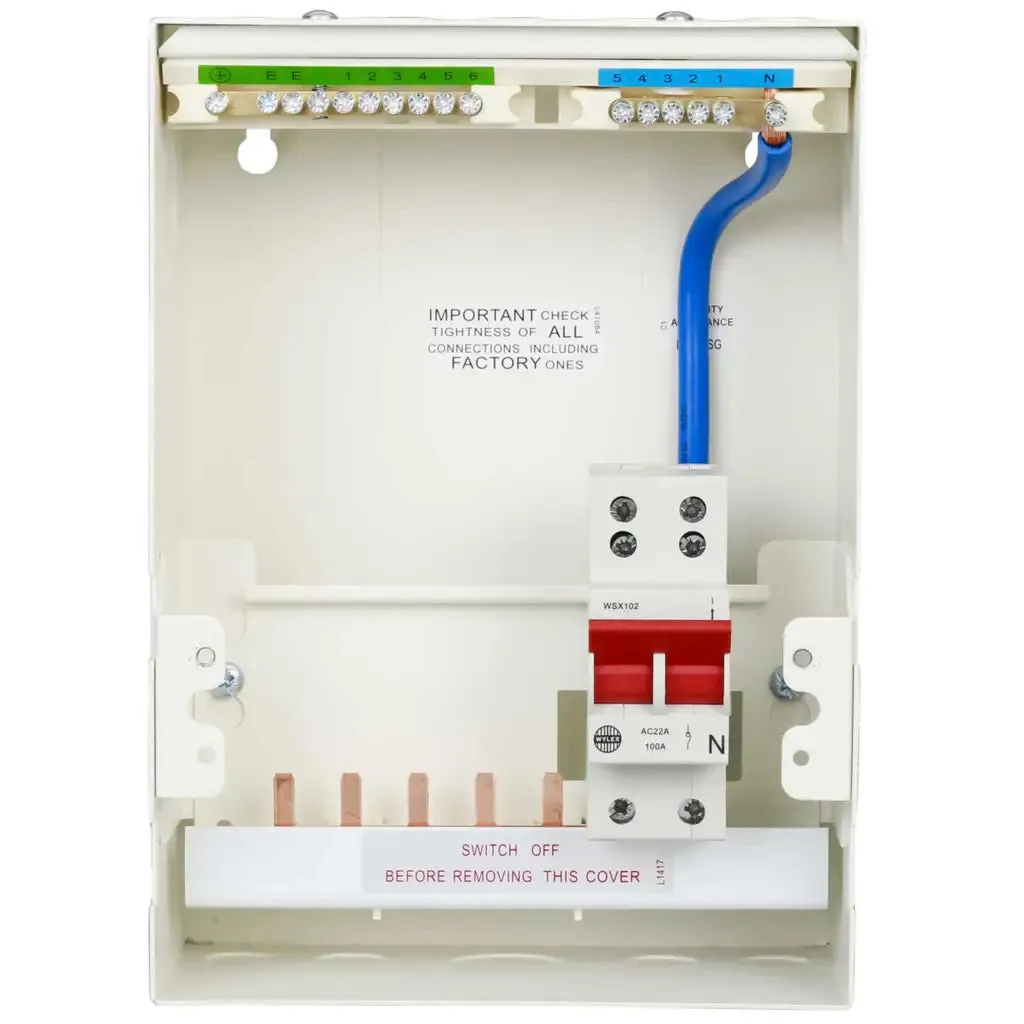

The Wylex 5 Way consumer unit is main switch only. It Includes a 100A main switch with twin line and neutral supply terminals and a 100A fixed busbar assembly. It accepts all Wylex miniature final circuit protection devices; MCBs, RCBOs and AFDDs & accepts the Wylex miniature type 2 SPD, NMT2SPD3W/1. Constructed from a full metal enclosure with curved visor and temporary locking facility.
-100A incoming isolator fitted
-Amendment 3 compliant
-Non-combustible enclosure
Specifications:
| Brand | Wylex |
| Compliance | BSEN61439-3 |
| Current Rating | 100A |
| Depth | 121mm |
| Dimensions | (H)261mm (W)188mm (D)121mm |
| Guarantee | 1 Year |
| Height | 261mm |
| Incoming Device | 100A Isolator |
| Material | Metal |
| Mounting | Surface |
| Number of Modules | 7 |
| Number of Outgoing Ways | 5 |
| Packaging Types | Each |
| Product Range | NM Metal |
| Surge Protection Fitted | No |
| Surge Protection Ready | No |
| Unspsc V18 | 39121110 |
| Voltage Rating | 230V |
| Weight | 2.6kg |
| Width | 188mm |
