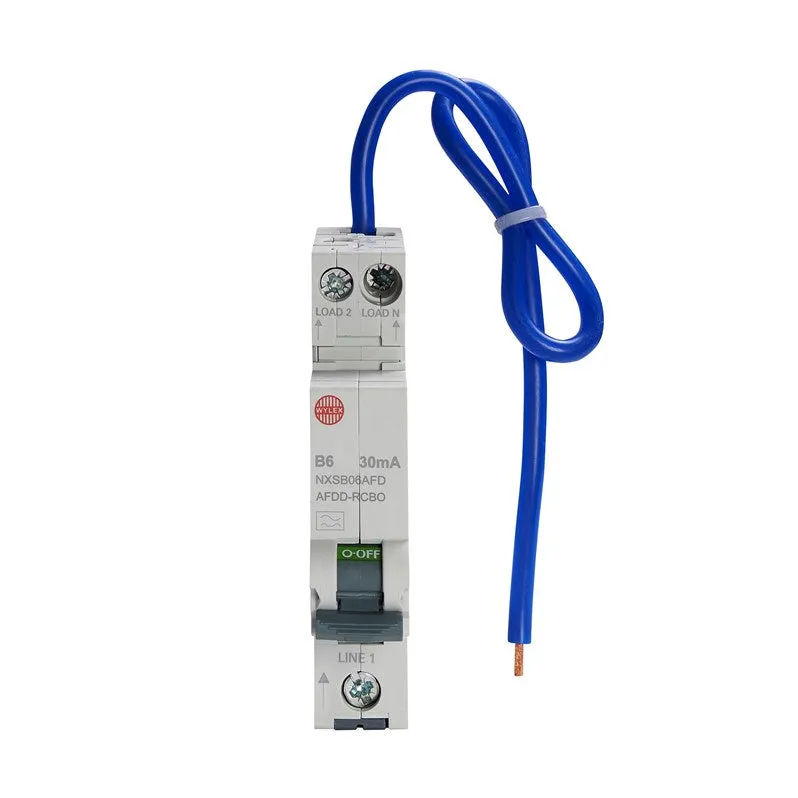

Single module, Miniature Bi-Directional AFDD RCBO combined. 6A B curve (MCB), 30mA Type A (RCD). Single pole with switched neutral. No miss busbar connection. Fits NM & NMX consumer units and NH L range Distribution Boards.
-Fits all new and exisiting installations and combines 3 technologies
-AFDD technology automatically disconnects dangerous electrical arcs that can cause fires
-MCB technology prevents overload currents and overheating
-RCD technology which prevents electrical shocks
-All in one single compact module
Specifications:
| Brand | Wylex |
| Current Rating | 6A |
| Depth | 77mm |
| Dimensions | (H)90 mm x (W)18 mm x (D)77 mm |
| Frequency | 50Hz |
| Guarantee | 1 Year |
| Height | 90mm |
| IP Rating | IP20 |
| Mounting | DIN Rail |
| Number or Modules | 1 |
| Number of Poles | Single Pole and Neutral |
| Outgoing Terminal Capacity | 16mm² |
| Packaging Types | Each |
| Product Range | NXS |
| RCD Type | A |
| Short Circuit Rating | 6kA |
| Standards | IEC 61009-1, BS EN 62606 |
| Tripping Characteristics | B Curve |
| Tripping Sensitivity | 30mA |
| Unspsc V18 | 39121601 |
| Voltage Rating | 230V |
| Weight | 0.165kg |
| Width | 18mm |
